MPQ4569GN-AEC1-Z Mps Monolithic Power Systems 1V 1 Output 300mA 8-SOIC

Shenzhen Zhaocun Electronics Co., Ltd.
Contact Now

MPQ4569GN-AEC1-Z Mps Monolithic Power Systems 1V 1 Output 300mA 8-SOIC

Brand Name : MPS

Model Number : MPQ4569GN-AEC1-Z

Certification : RoHS

Place of Origin : Monolithic Power Systems Inc.

MOQ : 2500 PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10K PCS

Delivery Time : 2-3 DAYS

Packaging Details : 2500 PCS/Tape

Product Number : MPQ4569GN-AEC1-Z

Manufacturer : Monolithic Power Systems (MPS)

Category : Voltage Regulators - DC DC Switching Regulators

Output Type : Adjustable

Number of Outputs : 1

Input Voltage-Max : 75V

Input Voltage-Min : 4.5V

Output oltage-Max : 67.5V

Output Voltage-Min : 300mA

Topology : BUCK

Switching Frequency : 600KHz~1MHz

Operating temperature : -40°C ~ 125°C

Mounting Type : Surface Mount

Package / Case : 8-SOIC (0.154", 3.90mm Width) Exposed Pad

Supplier Device Package : 8-SOIC-EP

Contact Now

MPQ4569GN-AEC1-Z Buck Switching Regulator IC Positive Adjustable 1V 1 Output 300mA 8-SOIC

Quick Detail:

Manufacturer
Monolithic Power Systems Inc.
Manufacturer Product Number
MPQ4569GN-AEC1-Z
Description
IC REG BUCK ADJ 300MA 8SOIC
Detailed Description
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 300mA 8-SOIC (0.154", 3.90mm Width) Exposed Pad

Product Attributes:

TYPE
DESCRIPTION
Category
Voltage Regulators - DC DC Switching Regulators
Mfr
Monolithic Power Systems Inc.
Series
Automotive, AEC-Q100
Product Status
Active
Function
Step-Down
Output Configuration
Positive
Topology
Buck
Output Type
Adjustable
Number of Outputs
1
Voltage - Input (Min)
4.5V
Voltage - Input (Max)
75V
Voltage - Output (Min/Fixed)
1V
Voltage - Output (Max)
67.5V
Current - Output
300mA
Synchronous Rectifier
Yes
Operating Temperature
-40°C ~ 125°C (TJ)
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package
8-SOIC-EP
Base Product Number
MPQ4569

Additional Resources:

ATTRIBUTE DESCRIPTION
Standard Package 2500

Description:

The MPQ4569 is a step-down switching regulator with integrated high-side/low-side, high-voltage power MOSFETs. It provides a highly efficient output of up to 0.3A.

The wide 4.5V to 75V input range accommodates a variety of step-down applications in automotive environment. A 5μA shutdown mode quiescent current in full temperature range is good for battery-powered applications.

It allows for high power conversion efficiency over a wide load range by scaling down the switching frequency under light-load condition to reduce the switching and gate driver losses.

The switching frequency during start-up and short circuit also can be scaled down to prevent inductor current runaway. Thermal shutdown provides reliable, fault-tolerant operation.

The MPQ4569 is available in QFN-10 (3mmx3mm) and SOIC-8 EP packages.

FEATURES

 20μA Quiescent Current (Active mode)

 Wide 4.5V to 75V Operating Input Range

 1.2Ω/0.45Ω Internal Power MOSFETs

 Programmable Soft-Start

 FB-Tolerance: 1% at Room Temperature; 2% at Full Temperature.

 Adjustable Output Voltage

 1V Reference Voltage Output for QFN Package

 Low Shutdown Mode Current: 5μA

 Available in QFN-10 (3mmx3mm) and SOIC-8 EP Packages

 Available in AEC-Q100 Grade 1

APPLICATIONS

 Automotive Systems

 Industrial Power Systems

 Distributed Power Systems

 Battery Powered Systems

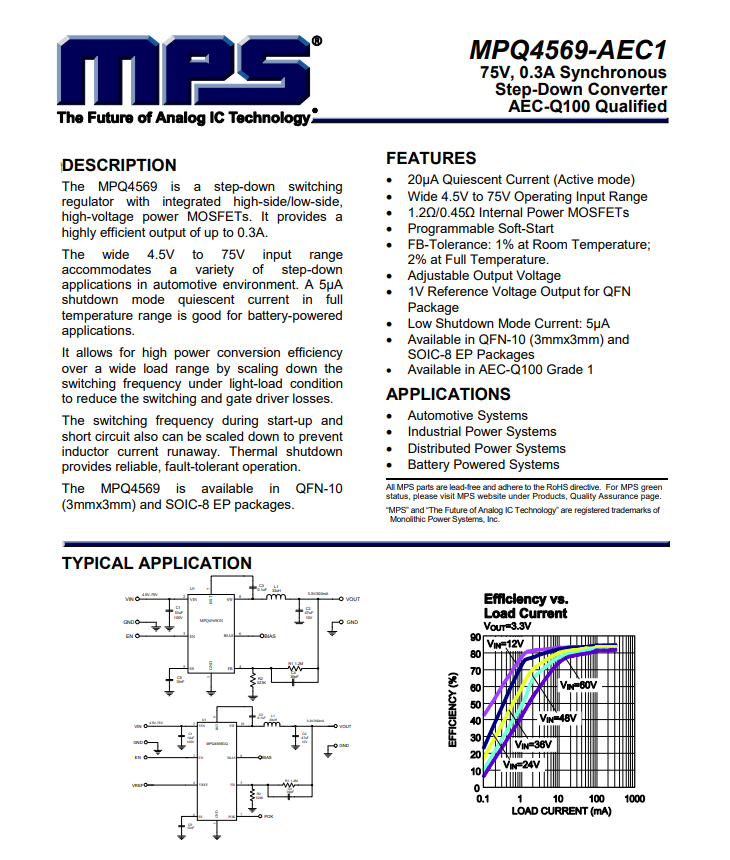

DataPicture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MPQ4569-AEC1/document_id/3867
