MP8765GQ-Z MPS Buck Switching Regulator IC Positive Adjustable 0.604V 1 Output 6A 16-PowerVFQFN

Brand Name : MPS

Model Number : MP8765GQ-Z

Certification : RoHS

Place of Origin : America

MOQ : 5000PCS

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 9.3K PCS

Delivery Time : 2-3 DAYS

Packaging Details : 5000 PCS/Tape

Manufacturer : Monolithic Power Systems (MPS)

Category : Voltage Regulators - DC DC Switching Regulators

Product Number : MP8765GQ-Z

Output Type : Adjustable

Number of Outputs : 1

Input Voltage-Max : 22V

Input Voltage-Min : 5.5V

Output oltage-Max : 12V

Output Voltage-Min : 0.604V

Operating temperature : -40°C ~ 125°C

Current - Output (Max) : 6A

Frequency - Switching : 500kHz

Package / Case : 16-PowerVFQFN

Supplier Device Package : 16-QFN (3x3)

Contact Now

Datasheet:MP8765GQ-Z

TYPE	DESCRIPTION
Category	Voltage Regulators - DC DC Switching Regulators
Mfr	Monolithic Power Systems Inc.
Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Voltage - Input (Min)	5V
Voltage - Input (Max)	22V
Voltage - Output (Min/Fixed)	0.604V
Voltage - Output (Max)	5.5V
Current - Output	6A
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	21-PowerVFQFN
Supplier Device Package	21-QFN (3x4)
Base Product Number	MPQ8765

Additional Resources:

ATTRIBUTE	DESCRIPTION
Standard Package	5000

DESCRIPTION
The MP8765 is a fully integrated high frequency synchronous rectified step-down switch mode converter. It offers very compact solutions to achieve 6A continuous output current over a wide input supply range with excellent load and line regulation. The MP8765 operates at high efficiency over a wide output current load range.

Constant-On-Time (COT) control mode provides fast transient response and eases loop stabilization.

Under voltage lockout is internally set as 4.6 V, An open drain power good signal indicates the output is within its nominal voltage range.

Full protection features include OCP and thermal shut down.

The converter requires minimum number of external components and is available in QFN16 (3mmx3mm) package.

FEATURES
 Wide 5V to 24V Operating Input Range
 6A Continuous Output Current
 PFM/PWM Mode Selectable
 Low RDS(ON) Internal Power MOSFETs
 Proprietary Switching Loss Reduction Technique
 1% Reference Voltage
 7ms Internal Soft Start
 Output Discharge
 500kHz Switching Frequency
 Hiccup OCP Protection and Thermal Shutdown
 Auto Retry OVP Protection
 Output Adjustable from 0.604V to 5.5V

APPLICATIONS
 Laptop Computer
 Tablet PC
 Networking Systems
 Personal Video Recorders
 Flat Panel Television and Monitors
 Distributed Power Systems

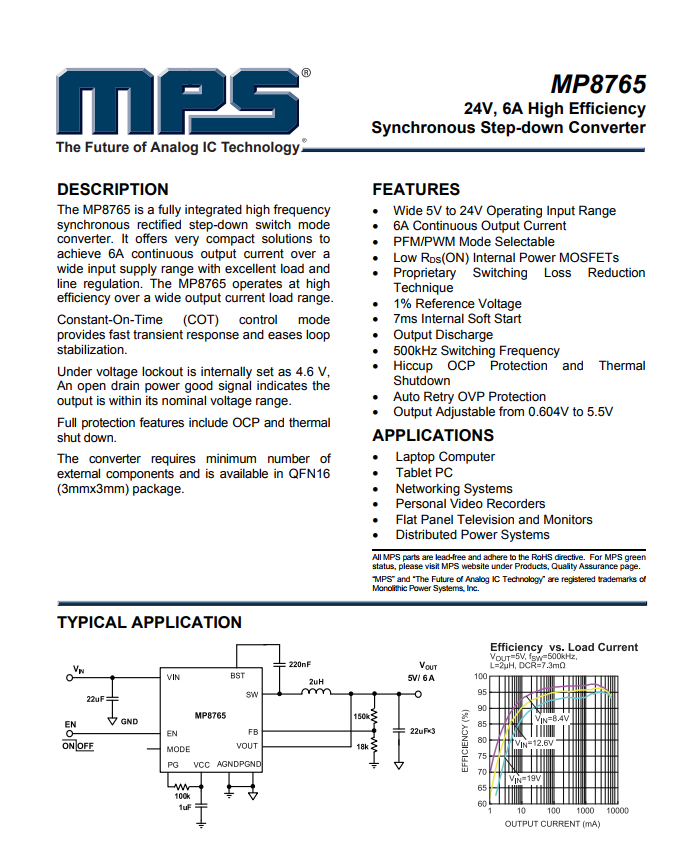

DataPicture:https://www.monolithicpower.com/en/documentview/productdocument/index/version/2/document_type/Datasheet/lang/en/sku/MP8765/document_id/777
