Datasheet:MPQ4570GF-AEC1-Z
Buck Switching Regulator IC Positive Adjustable 1V 1 Output 3A 21-PowerVFQFN
Features:
● Wide Input Voltage Range o 4.5V to 55V
●Differential Output Voltage Remote Sense
●Programmable Accurate Current Limit Level
● 6A Output Current
●Proprietary Switching Loss Reduction Technique
●Adaptive COT for Ultrafast Transient Response
●Stable with Zero ESR Output Capacitor
Description:
TheMPQ4570GF-AEC1-Z range with excellent load and line regulation.The MPQMPQ4570GF-AEC1-Z over a wide output current load range.TheMPQ4570GF-AEC1-Z adopts internally compensated operates at high efficiencyoffers a very compact solution to achieve up to6A output current over a wide input supplyis a fully integrated, high frequency, synchronous buck converter. It
constant-on-time (COT) control mode thatprovides fast transient response and eases loop
stabilization.
Quick Detail:
| Packaging | Tape & Reel (TR) |
| Manufacturer | Monolithic Power Systems Inc. |
| Manufacturer Product Number | MPQ4570GF-AEC1-Z |
| Description | IC REG BUCK ADJUSTABLE 3A 21QFN |
| Detailed Description | Buck Switching Regulator IC Positive Adjustable 1V 1 Output 3A 21-PowerVFQFN
|
Product Attributes:
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) |
| Voltage Regulators - DC DC Switching Regulators |
| Mfr | Monolithic Power Systems Inc. |
| Package | |
| Product Status | |
| Function | |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 49.5V |
| Frequency - Switching | |
| Synchronous Rectifier | |
| Operating Temperature | |
| Mounting Type | |
| Package / Case | 21-PowerVFQFN |
| Supplier Device Package | |
| Base Product Number | MPQ4570 |
Additional Resources:
| ATTRIBUTE | DESCRIPTION |
| Standard Package | 2500 |

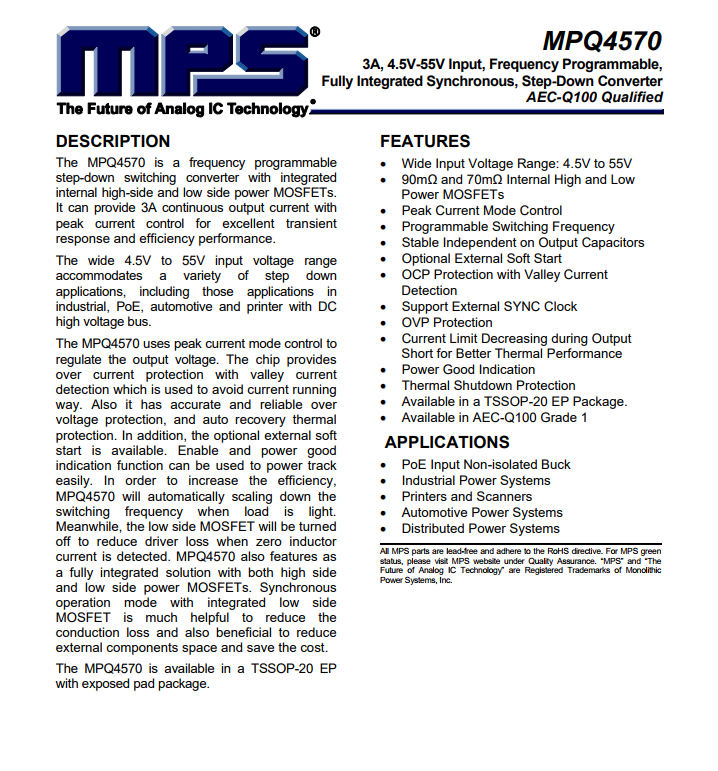

Data Picture:
|
|
MPQ4570GF-AEC1-Z Buck Switching Regulator IC Positive Adjustable 1V 1 Output 3A 20-TSSOP (0.173", 4.40mm Width) Exposed Images
|
